詳細信息

先進的開關模式設計，以達到更小的噪音和畸變，更高的功率密度。雙通道輸出，交流耦合電壓控制模式，最適合電抗性負載。8101能提供最大16A電流和235Vrms連續輸出，帶寬范圍在10 Hz至20 KHz。

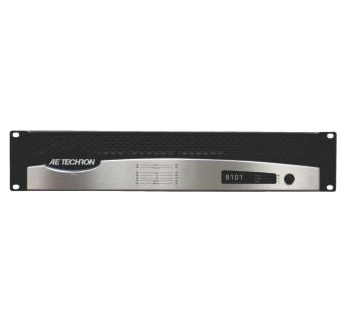

Dual-Channel, AC-Coupled Power Supply Amplifier for Pulse or Continuous Duty Operation

Features
The 8101 power supply amplifier features an advanced switch-mode design that results in low noise and distortion, and high power density. It is configured as a dual-channel, AC-coupled, controlled voltage amplifier ideal for reactive loads. The 8101 can provide up to 16 Arms and 235 Vrms continuous output (bridge-mono mode). It offers a continuous, full-power frequency bandwidth of 10 Hz to 20 kHz.
The 8101 also features an integrated switching power supply that reduces weight and allows the unit to fit a standard 2U rack space. The 8101 operates from single-phase, 120-volt AC mains (230 VAC version available
