106A有效值（150A峰值）電流輸出，提供對(duì)繼電器，保險(xiǎn)絲和其它關(guān)鍵的元器件的全面的性能測(cè)試。低噪聲，低失真和最小的相位誤差。

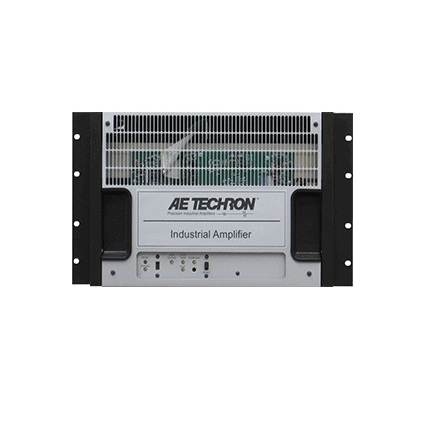

7780RLY was created to meet the demanding requirements of the power utility industry. With an output capability of 106 A rms (150A peak), the 7780RLY is powerful enough to put protection relays, fuses and other critical components through a full range of tests.
The low noise floor, low distortion & minimal phase error of the 7780RLY make it the ideal amplifier for power grid modeling.


FEATURES
- High compliance voltage allows the 7780RLY to drive electromechanical relays directly.
- Maintains phase accuracy for any load from a dead short to 0.25ohms.
- Front panel indicators for rapid assessment of amplifier status.
- Designed to survive input overloads, continuous operation under demanding conditions & improper output conditions - including improper loads.
- Shipped ready to operate from 208 volt 3-phase AC mains. 240, 380 or 415 volt AC mains operation available upon request.
- Installs into a standard 19 inch rack or stands alone for bench top operation.
- Backed with AE Techron's application engineering, service facilities, complete technical information and a 1-year warranty.
